Windows Service Analysis

Introduction

In my first post, I will analyze the dropper of Shamoon 3.0 malware which is windows service executable that differs from a normal executable structure and execution method.

So by analyzing dropper of Shamoon 3.0, we can understand:

1) windows service structure.

2) how to analyze & debug windows service.

So let us understand what's windows service and how it structured before jumping to Analysis.

Windows service program

a program that executed by Service Control Manager (SCM) and conforms to its rules. it runs in the background with no GUI interface as it doesn't need a user to interact with it. It can be started automatically at system boot.

Windows Service Structure

The Window Service Structure program consists of three important functions as seen in windows service structure Figure:

1. Main entry point function
the main function of the windows service program, its goal to inform the service name and its service main function to SCM by calling StartServiceCtrlDispatcherA (SERVICE_TABLE_ENTRYA  *lpServiceStartTable) function. so that the SCM starts execution of the service main function. the service name and its main function provided by a lpServiceStartTable parameter which is a pointer to the list of SERVICE_TABLE_ENTRYA structures.

 // SERVICE_TABLE_ENTRYA structure
 typedef struct _SERVICE_TABLE_ENTRYA {
  LPSTR                    lpServiceName;
  LPSERVICE_MAIN_FUNCTIONA lpServiceProc; }

Note: if windows service program didn't call StartServiceCtrlDispatcherA before a certain timeout SCM will stop the execution of the service.

2. Service main function
the function that was specified as service main by main entry point function and its goal to register a callback function called service control handler by calling RegisterServiceCtrlHandlerA (lpServiceName, lpHandlerProc) function to handle control requests sent by SCM.
Then it sends service status to SCM by calling SetServiceStatus function so that SCM can track the status of service. Also, the service functionality code is implemented here.

3. Service control handler callback
a callback function that is expected to handle service STOP, PAUSE, CONTINUE, and SHUTDOWN codes sent by SCM. The control handler must also return within 30 seconds or SCM will return an error stating that service is not responsive.

Note: service can't be executed like any executable but by it needs to be installed and started using these commands.

 sc create "ServiceName" binPath= C:\service.exe
 sc start "ServiceName"

Shamoon 3.0 dropper Analysis

Sample Hashes:
MD5: de07c4ac94a50663851e5dabe6e50d1f
SHA1: df177772518a8fcedbbc805ceed8daecc0f42fed
SHA-256: c3ab58b3154e5f5101ba74fccfd27a9ab445e41262cdf47e8cc3be7416a5904f

I started my analysis by checking the resources of executable then I found three encrypted or encoded resources and their names LNG, MNU and PIC after that I looked at disassembly graph of the main function in Fig [1].  then I noticed two things, first a call to StartServiceCtrlDispatcherA and the second thing that it checks argument count so I concluded that it was a service and need an argument to run.

Fig [1]

Although it's a service if it runs as a normal process it contains code that responsible to setup itself as service. so I decided to start debugging it like any normal process to spotlight on how it's going to set up and run itself as service.
In Fig [2] it calls a CreateService function to create a service then specify service name and the path of service program file with command argument LocalService to run with. Also, set its start type as AUTO_START for persistence to run
automatically during startup.

Fig [2]

Also, it sets a service description by using ChangeServiceConfig2W in Fig [3].

Fig [3]

Then it starts itself as service using StartService function in Fig [4].

Fig [4]

Here comes the tricky part which is how to debug the service starting from the very beginning so that we won't miss anything. The first step is to replace two bytes from entry point function with jump self instruction that correspond to opcode EB FE. In Fig [5] we will replace push 14h with jump self instruction as in Fig [6].

Fig [5]

Fig [6]

The second step is to enable debug privilege in x32dbg that exist in options >> preferences >> engine so that we get the privilege needed to debug service. As we said in the early section about the service if it started without calling StartServiceCtrlDispatcherA function before a certain timeout then SCM will stop the service execution so we have to edit this timeout. So the third step to do is to create a Dword value called ServicesPipeTimeout in registry path HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control then set it to 86,400,000 which is 24 hours in a millisecond as in Fig [7] to extend the time for debugging. then restart our windows to apply this change.

Fig [7]

Now we can step over the StartService function in Fig [4] and attach to newly created service so it will stop at jump self instruction as in Fig [8] then we should replace this instruction by original one which is push 14h to continue debugging.

Fig [8]

Let us spotlight about what are the resources exist inside the service. After I continue debugging I find out that service started to search for a resource called LNG using function findResourceW and retrieves pointer this resource by using functions LoadResource and LockResource as in Fig [9].

Fig [9]

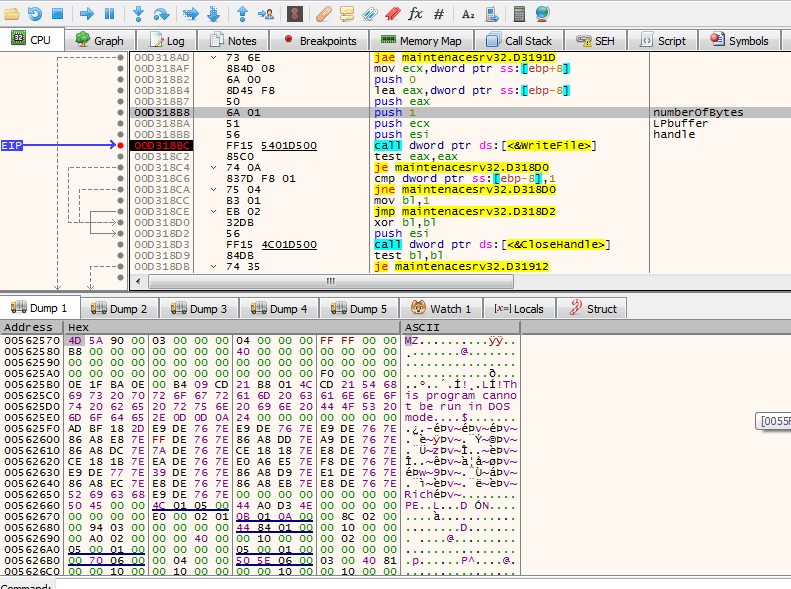

After service gets a pointer to LNG, it created a file called tsprint_ibv.exe as in Fig [10] to write LNG bytes from memory to that file. if you notice memory dump in Fig [11] the memory bytes start with MZ which is an indication that LNG is embedded windows exe. then it executed as in Fig [12].

Fig [10]

Fig [11]

Fig [12]

By hooking WINAPI functions, I discovered that the tsprint_ibv.exe process is responsible to drop and load driver called hdv725x.sys as in Fig [13] which is responsible for wiping a disk.

The MNU resource is loaded and written to file called netb57vxx.exe and executed in the same way as LNG resource. it's a communication module to communicate with C2 servers.

Fig [13]

Also, the service contains a 64-bit version of itself that saved as PIC resource which it will be dropped and setup if the operating system architecture is 64-bit.
